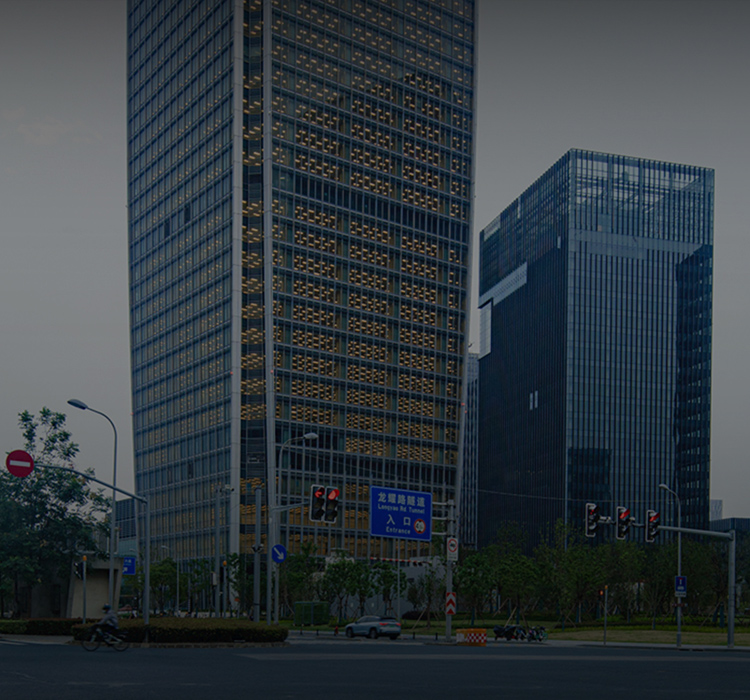

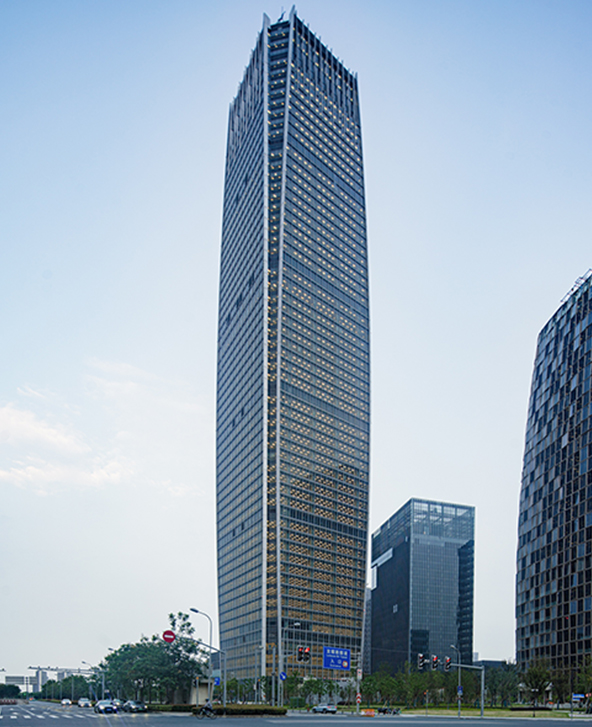

Lumina Shanghai

Lumina Shanghai stands at the centre of West Bund, across the Huangpu River from the New Bund. Standing at a towering height of 280 metres above ground, it marks a new benchmark for regional buildings, offering magnificent and expansive views from a 270-degree wide-angle perspective.

Lumina Shanghai links the commercial space, regional development and urban functions to create a comprehensive and dynamic landmark project with the "Lumina System", featuring a wide range of tenants such as arts and culture, sports and community, and presenting a far-reaching humanistic experience for the public.

With a total gross volume of approximately 200,000 square metres, Lumina Shanghai offers 61-storey quintessential International Grade A iconic office space and a well-designed 20,000 square metre retail space. The project covers approximately 2,600 to 3,400 square metres on each floor, and has a double-storey lobby with a height of approximately 10 metres. Bridges connect the project to the West Bund Media Port, creating unlimited business opportunities.

61

storey

quintessential International Grade A iconic office building divided into 5 zones
Approx10

m

two-storey lobby
Typical floor height 4.4m

with trading floors available
Spacious, flexible floors from

2,100m² to 3,000m²

View Of Project

VR Viewing Projects More Project VR

Location

Address: No.175 Longyao Road, Xuhui District, Shanghai, China

Retail

Project Highlights

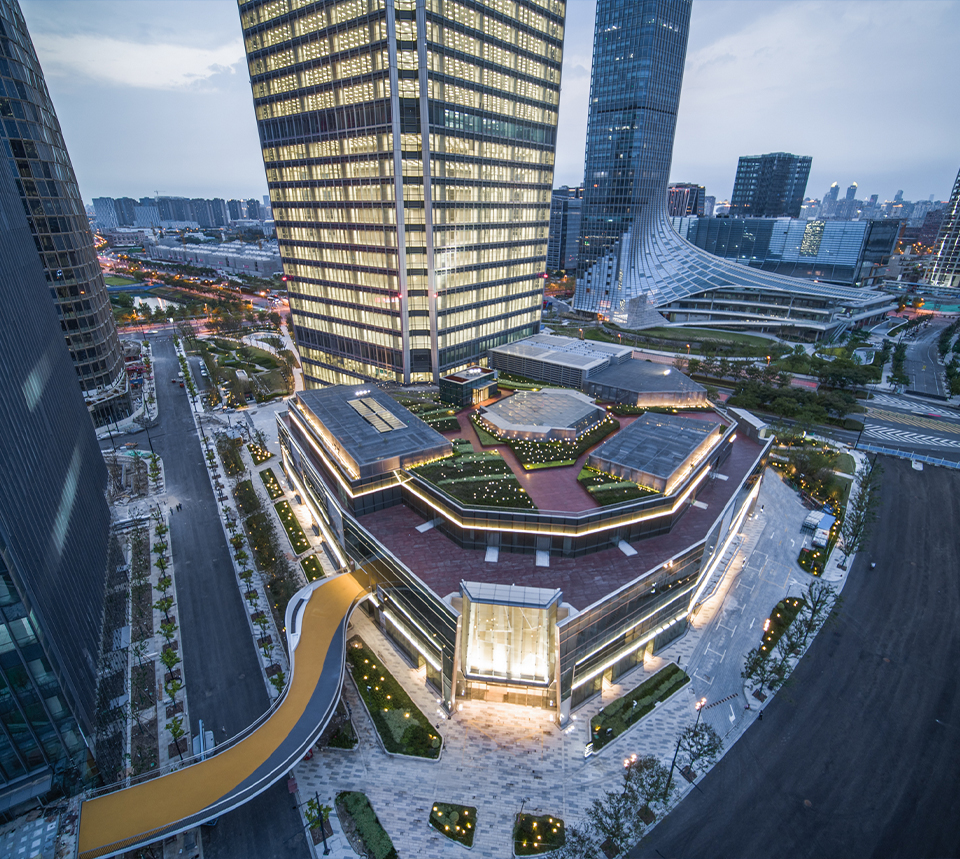

Dominating Core

Refreshing New Height

Lumina Shanghai stands at a height of 280 meters, setting a fresh standard for landmark architecture. Situated on the west side of the West Bund Media Port, the project aligns with the east-west axis of the cultural, media, and entertainment area.

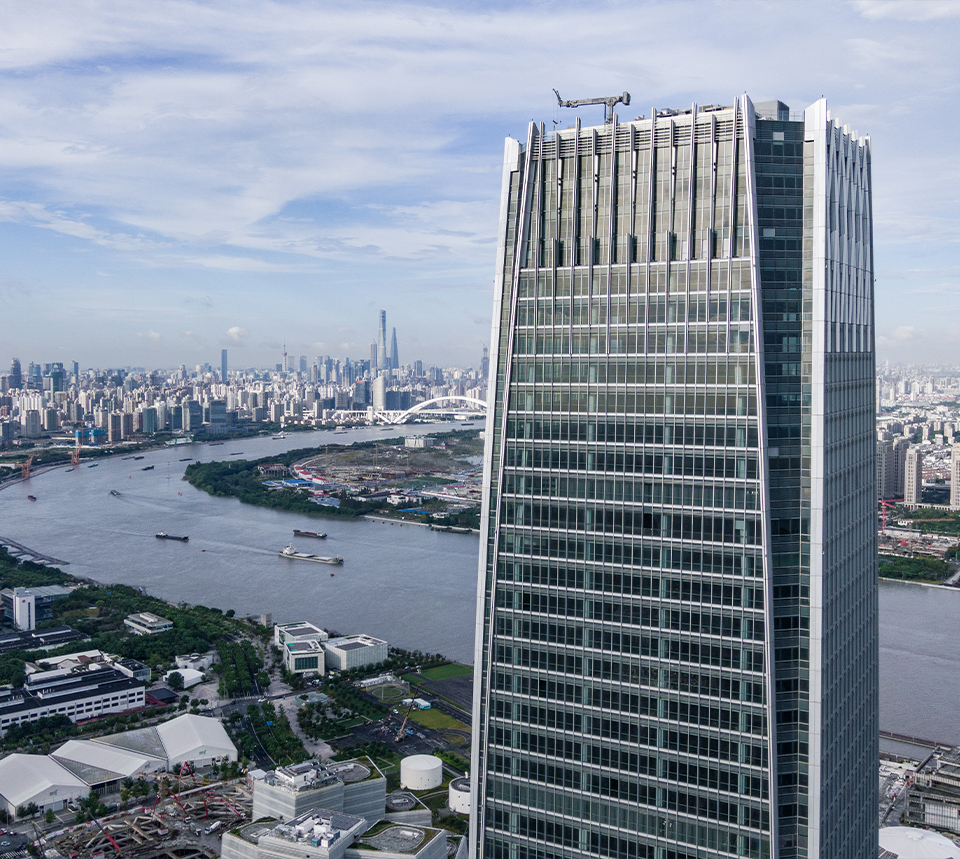

Diverse Spaces

Infinite Possibilities

Through the construction of an ecological system, Lumina Shanghai helps to continuously promote the integration of business and commercial. Everyone can experience cutting-edge living in their own comfort zone.

Project Specification

Zoning Plan

Project Specifications

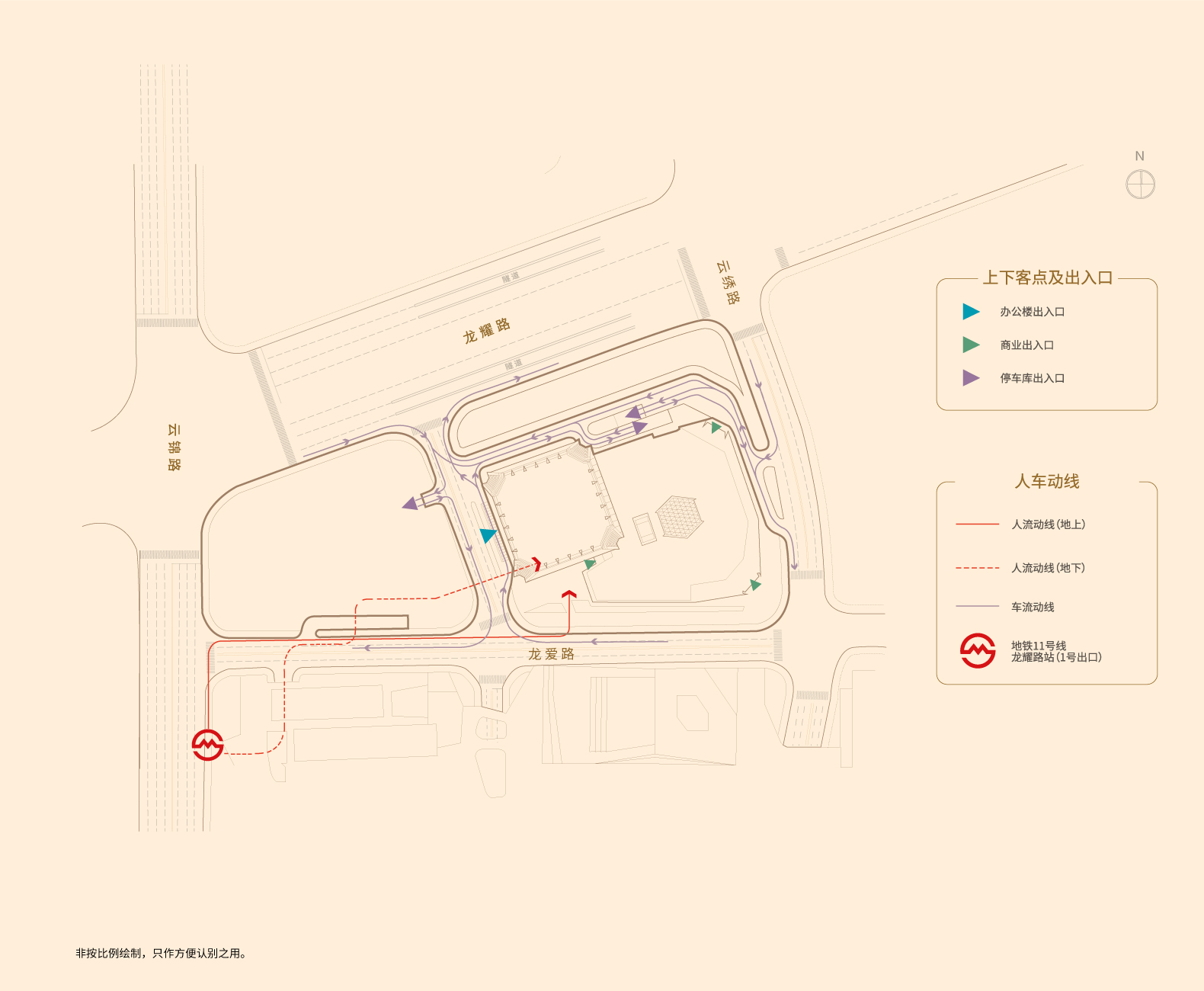

Master Layout Plan

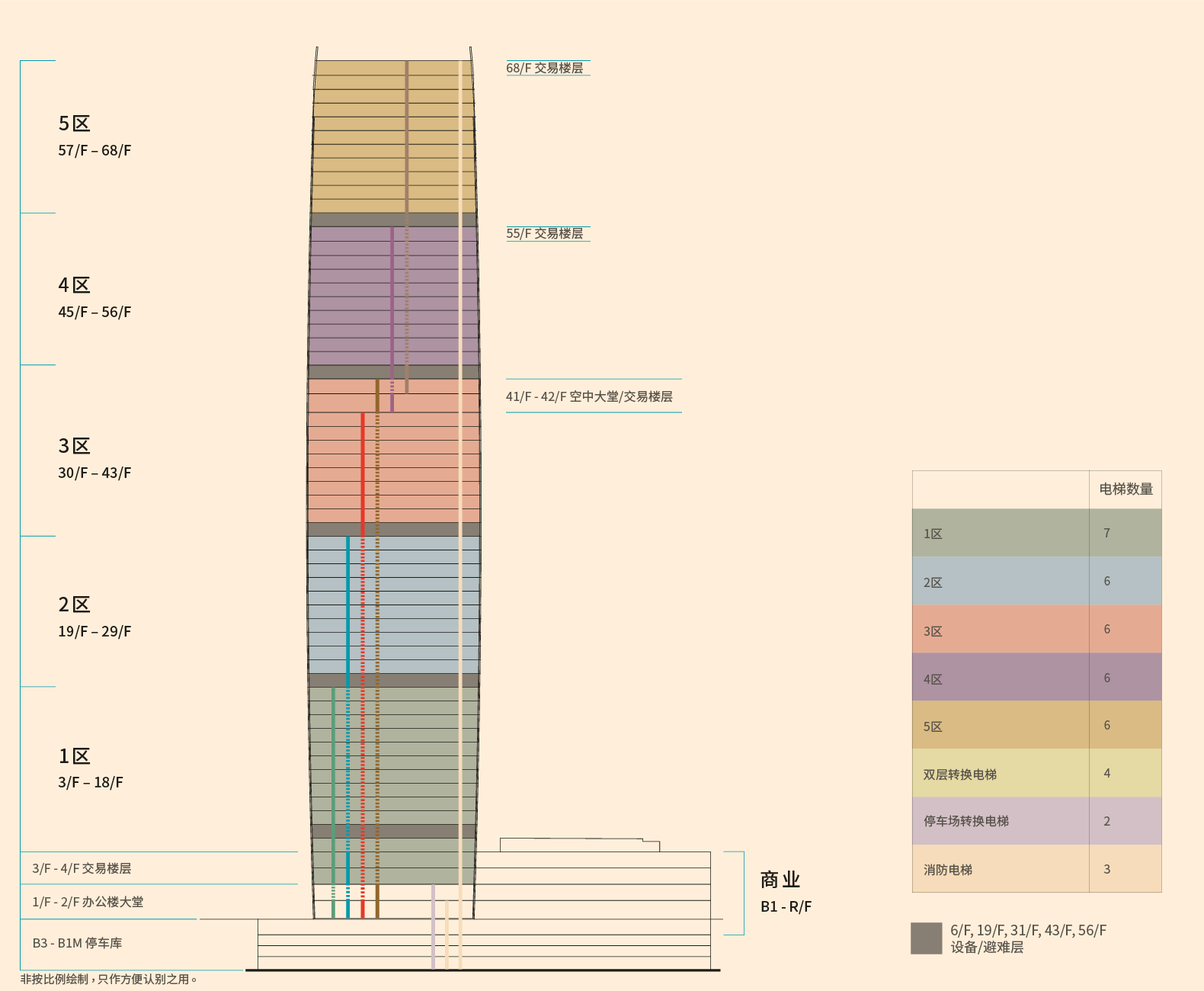

Zoning Plan

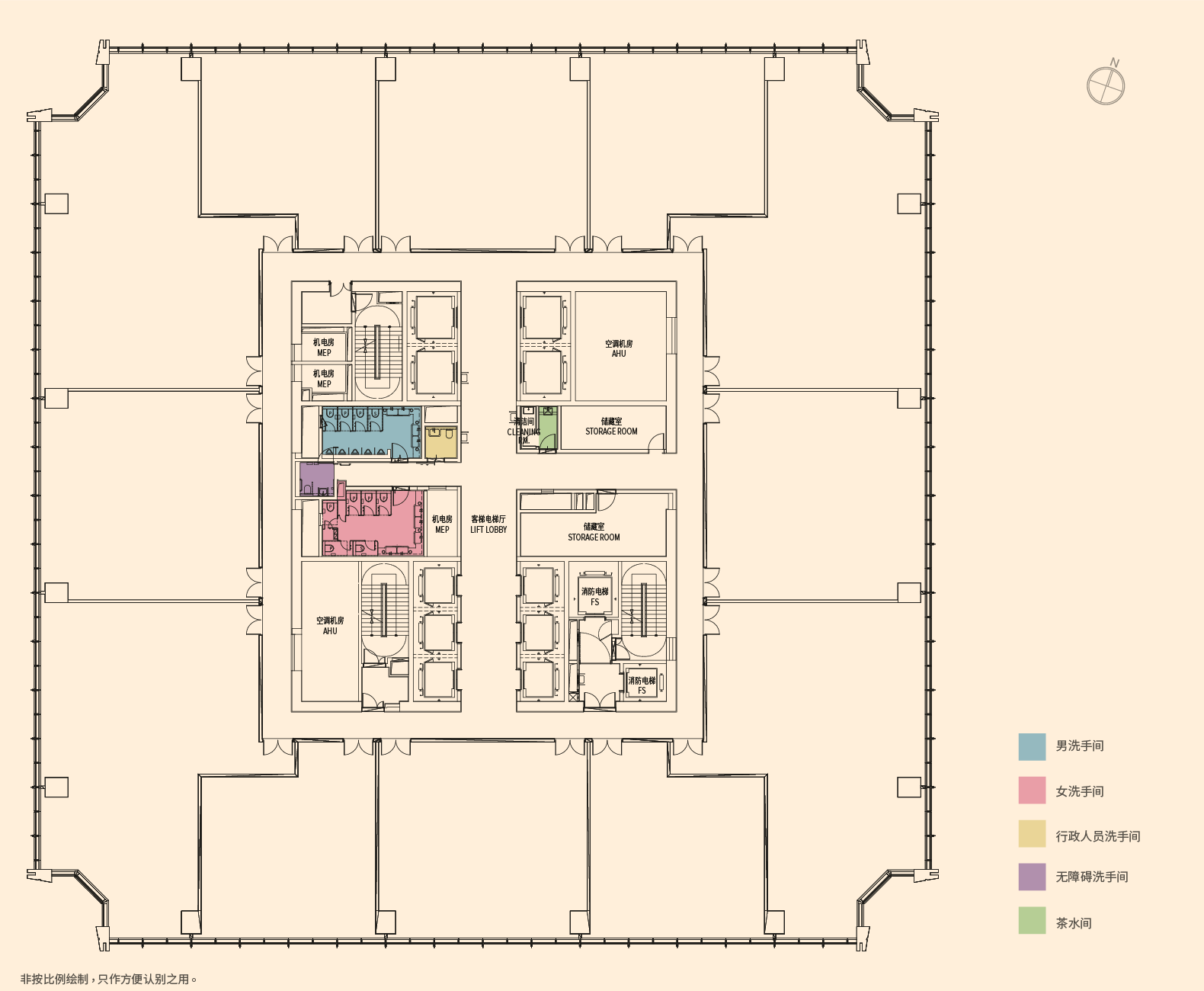

Typical Floor Plan (1)

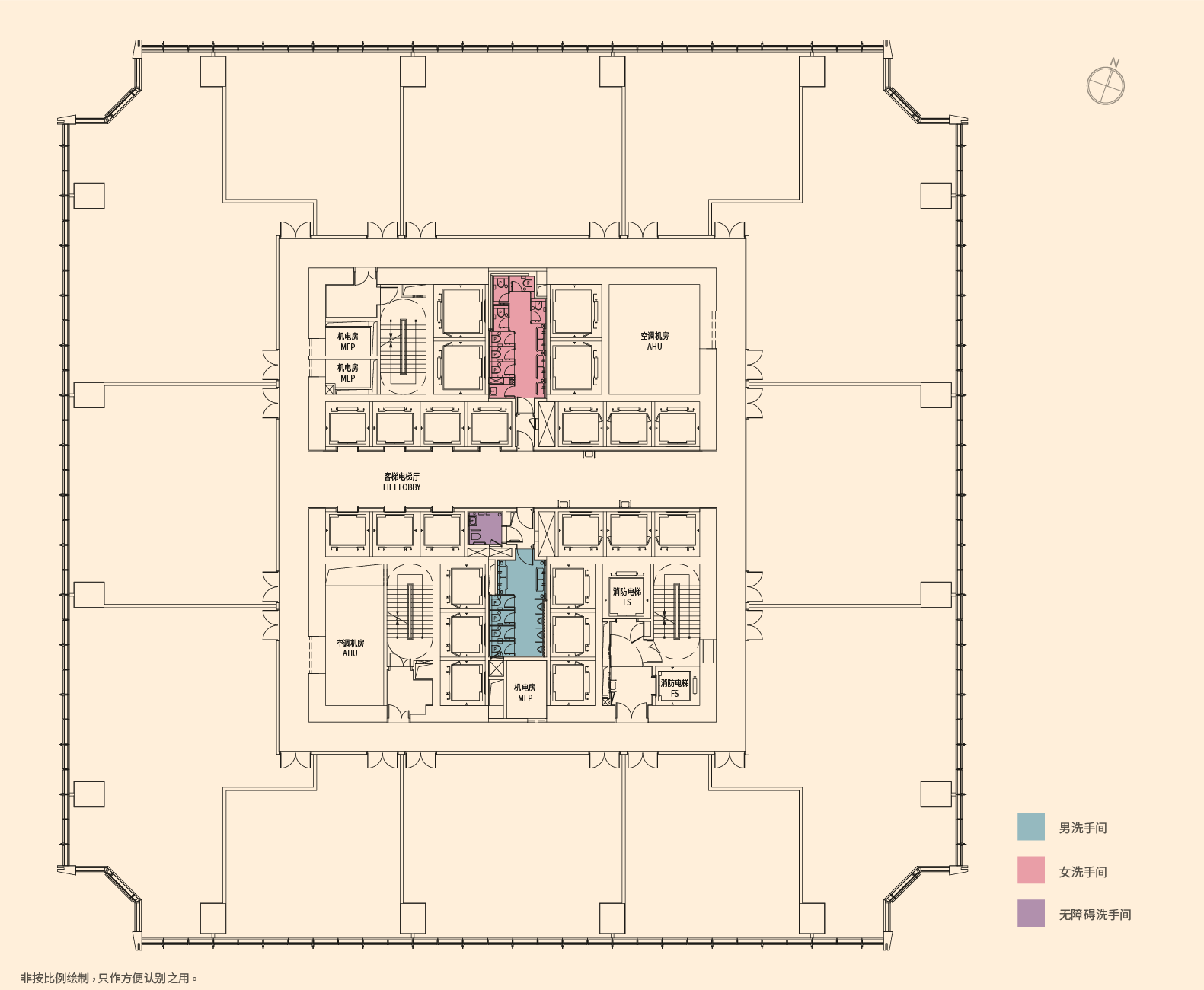

Typical Floor Plan (2)
Test-Fit Layout (Whole Floor - High Density)
Test-Fit Layout (Whole Floor - Low Density)
Test-Fit Layout (Half Floor - High Density)
Test-Fit Layout (Half Floor - Low Density)

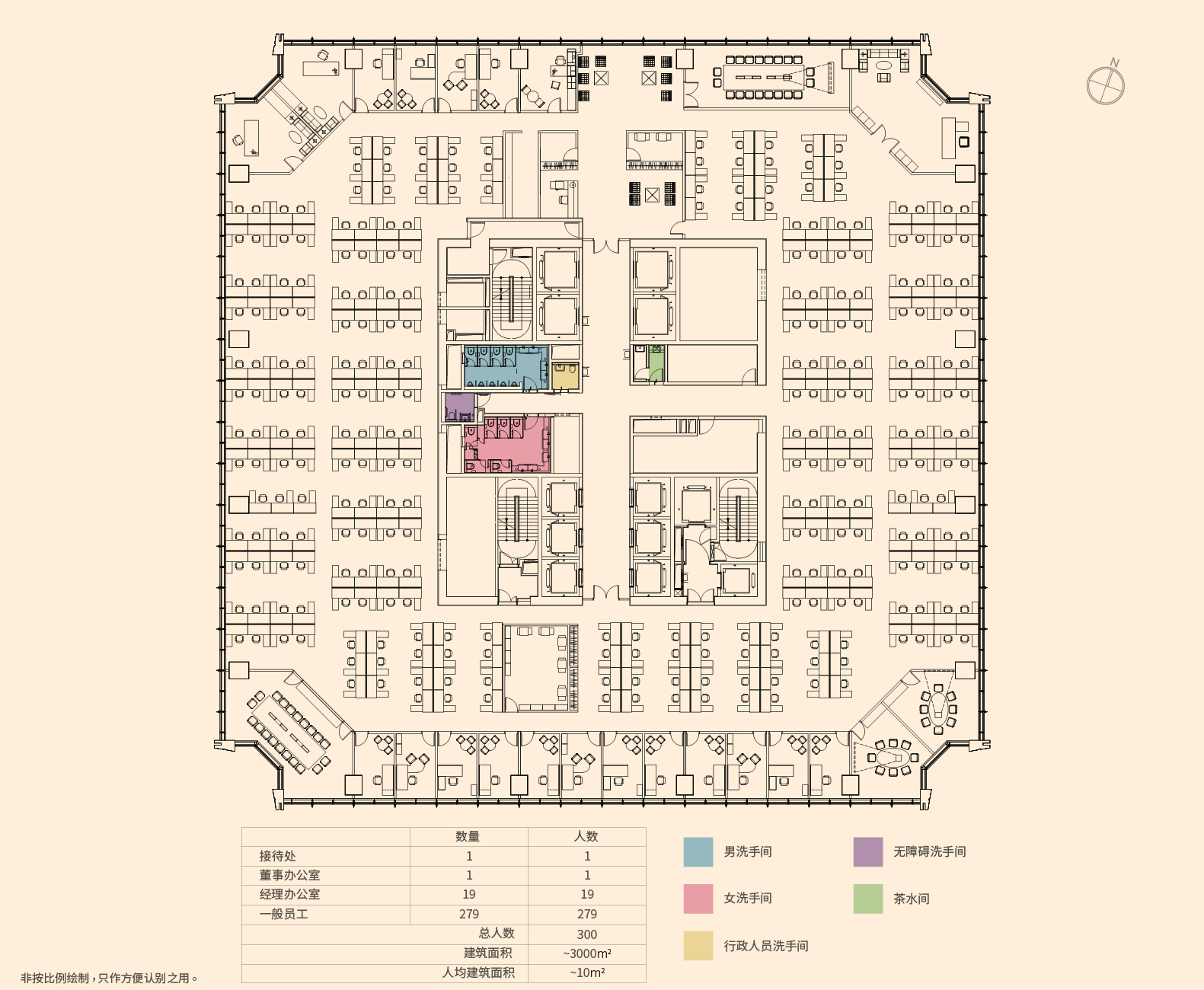

Test-Fit Layout (Whole Floor - High Density)

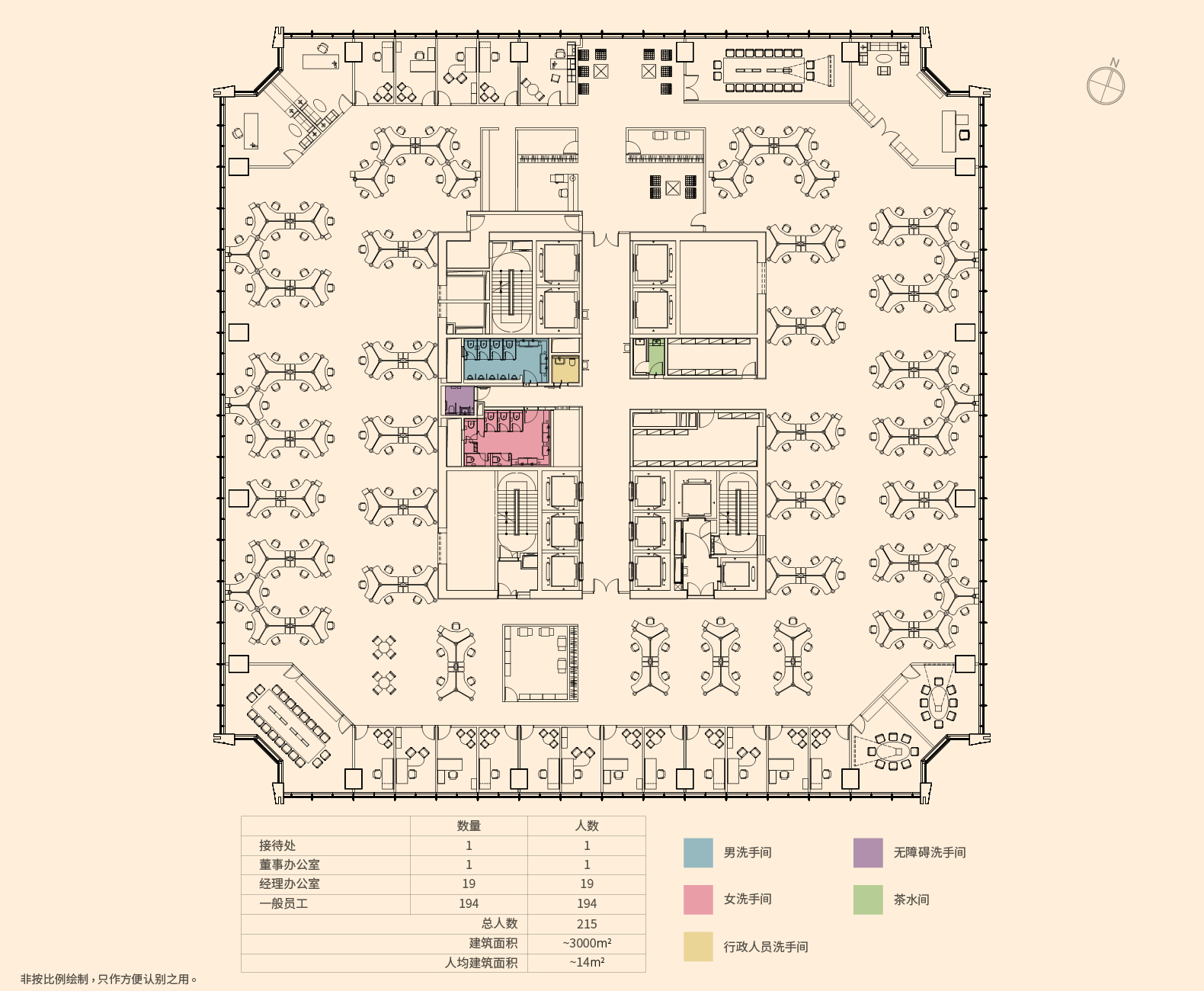

Test-Fit Layout (Whole Floor - Low Density)

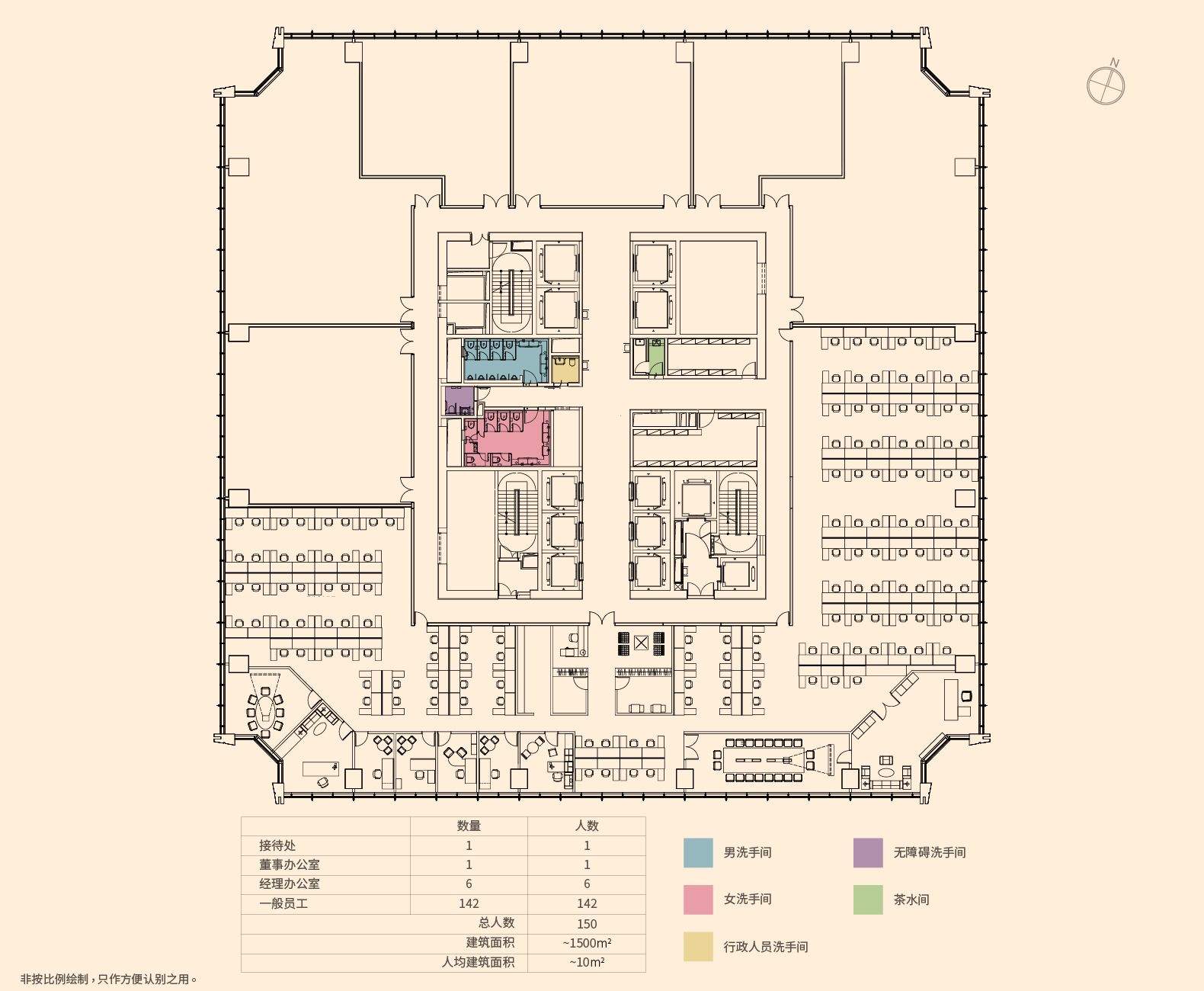

Test-Fit Layout (Half Floor - High Density)

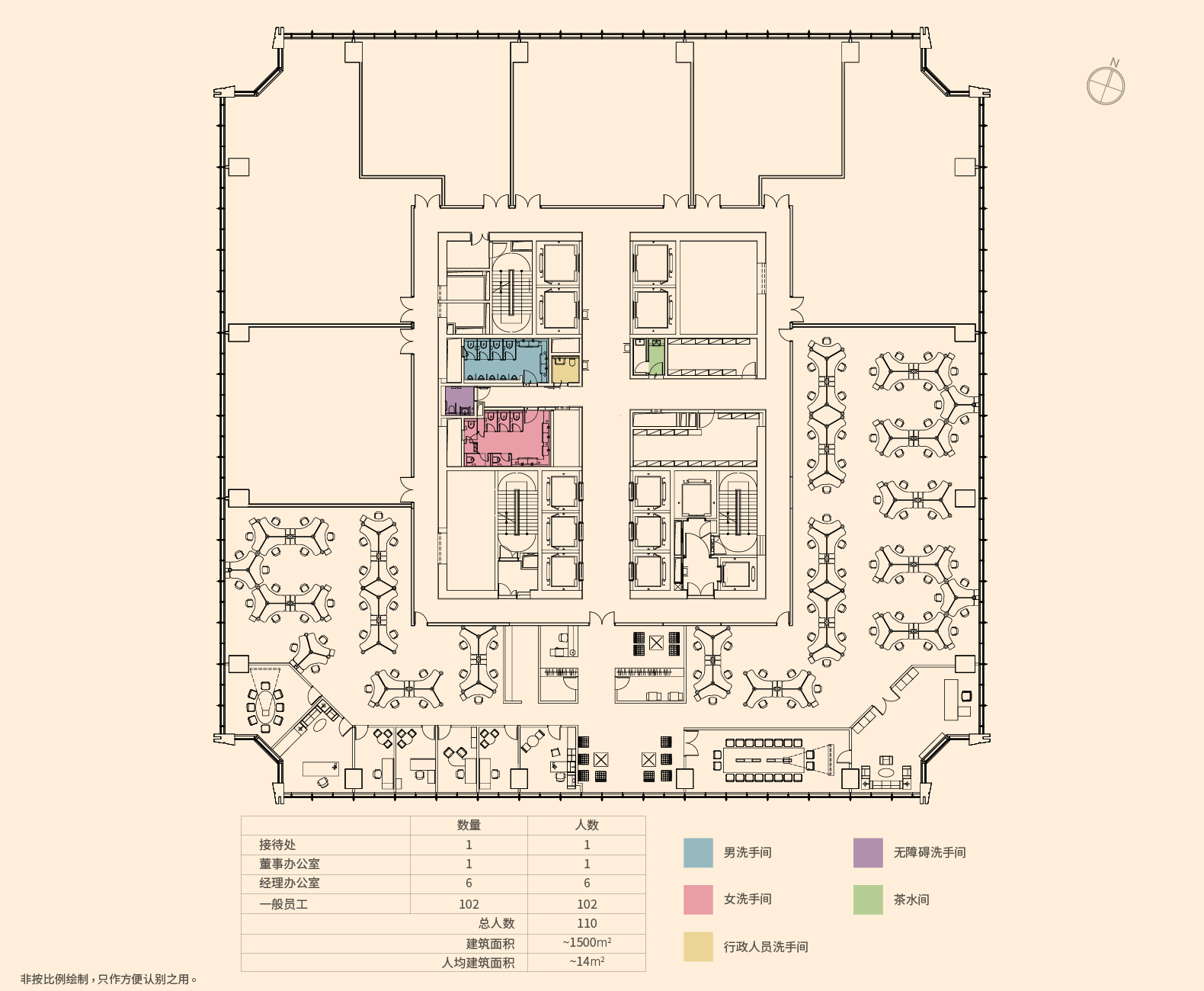

Test-Fit Layout (Half Floor - Low Density)

Building Height:

280m

Office Area:

Approx. 170,000㎡

Volumetric Plan:

61Floors

Below are nominated floors:

Zone 1: 3/F - 18/F

Zone 2: 19/F - 29/F

Zone 3: 30/F - 43/F

Zone 4: 45/F - 56/F

Zone 5: 57/F - 68/F

Sky lobby: 41/F、42/F

6/F, 19/F, 31/F, 43/F and 56/F Fare refuge and mechanical floors) (13/F、14/F、24/F、34/F、44/F、54/F and 64/F ommitted)

Typical Office Floor Area:

Approx. 2,100㎡ – 3,100㎡

Clear Ceiling Height:

Raised Floor System:

Typical floors:

150mm raised floor with standard floor boxes
3/F, 4/F Trading floors:
150mm raised floor with standard floor boxes
41/F, 42/F, 55/F, 68/F Trading floors:
300mm raised floor with standard floor boxes

Floor Loading:

Typical floors:300kg/㎡

Trading floors:400kg/㎡

Air Conditioning System:

VAV System

Cooling Capacity:

Typical floors:

3/F,4/F, 41/F, 42/F, 55/F Trading floors：140W/㎡

68/F Trading floor:152W/㎡

Air-exchange Rate:

30m³/hr/person

Lift System:

40 lifts in total

Zone 1: 7 Lifts

Zone 2-5: 6 Lifts per zone

Double deck shuttle lift: 4 Lifts

Parking shuttle lift: 2 Lifts

Fire services lift: 3 Lifts

Speed:

Zone 1 and 4: 4m/s

Zone 2, 3, 5 and shuttle lift: 6m/s

Car Parking Space:

Above ground: 19 Vehicles

Underground: 1,168 Vehicles (Including parking spaces for electric vehicles)

Executive Toilet:

Yes

Dual Feeders Power Supply:

Yes

Power Supply:

Typical floors: 85W/㎡

Trading floors: 140W/㎡

Emergency Generators:

Yes

24h Chilled Water System:

Yes

Intelligent Security Gate:

Yes

Unit Interior Decoration:

White emulsion paint on walls

Unit Doors:

Glass doors with metal frame, provided with door lock

Curtains:

White roller blind with manual control

Ceiling System:

Aluminum system ceiling tiles with standard lamp panels and LED modules (500lux)

Air Conditioning System:

VAV-BOX will be installed in place

Fire Control System:

Fire sprinkler system, hydrant system and AFA system will be installed in place

Raised Floor System:

Typical floors:

150mm raised floor with standard floor boxes
3/F, 4/F Trading floors:
150mm raised floor with standard floor boxes
41/F, 42/F, 55/F, 68/F Trading floors
300mm raised floor with standard floor boxes
